Trawlmaster is a wireless trawl monitoring system that provides complete trawl geometry.

Trawlers world over have experienced significant fuel savings coupled with increased catches.

Knowing the trawl’s geometry allows the user to keep the trawl optimal during every tow. Trawl wire lengths provide you with confidence that the trawl doors are in line. In cross currents, an adjustment is provided to align the doors. Door spread sensors allow users to tow by spread, not by speed. This is a well proven method to increase catches in heavy current. Upgrades can be made to these basic door sensors, such as door angle, temperature and depth. Back on the trawl, a complete picture can be provided using headline, bottom contact, wing-end and catch sensors.


A system consists of shipboard equipment (command unit, computer and hydrophone) that communicates wirelessly to sensors on the trawl. A dynamic 3D graphic of your trawl is presented that instantly gives an accurate trawl picture.

Activ-Omni Intelligence


The Notus Difference

Notus sensors boast an active, two-way communication system, not offered by other net monitoring systems. Instead of relying on traditional one-way pingers, Notus systems ‘talk’ to each other via proven two-way protocols. Using this reliable technology, Notus is the ONLY system capable of delivering trawl wire lengths with doorpsread of EACH net, giving a true geometric view of the gear.

Variable data rates: 5, 10, 20 and 60 second intervals

Notus is the only system to offer true, omnidirectional pattern beams in all of our net monitoring sensors. This is critical when turning, when a door has fallen over or when fishing gear is lost.

With Notus Activ-Omni Intelligence, achieve optimal performance, for superior results.


Notus Sensors



(Pictured) Single Trawl: Door Spread

DOORSPREAD SENSOR

Doorspread is the distance between the doors.

Major fuel savings are achieved with doorspread by adjusting the speed of the vessel to keep the optimal spread. For example, towing just 0.1 knots too fast into a current can overspread the gear by 10 meters.

The Notus Trawlmaster Doorspread sensor:

  • Indicates when doors have crossed

  • Detects when door has fallen or is stuck

  • Instantly see if a rock, pot or other debris is in the trawl

  • Notus has the only omnidirectional sensors on the market. Doorspread is provided on a turn with one door 100 meters behind the other


(Pictured) Single Trawl: Trawl Warp Measurement

TRAWL WARP MEASUREMENT SENSOR

Trawl Wire Lengths – Made possible by Activ-Omni Intelligence

By measuring trawl wires to within 0.1 meter, the Notus Trawlmaster:

  • Avoids measuring trawl wires on shore

  • Indicates the adjustment in cross current to "square" the doors

Doorspread and trawl wire lengths are standard Trawlmaster sensors. These sensors can be upgraded to include door depth, door angle and temperature.

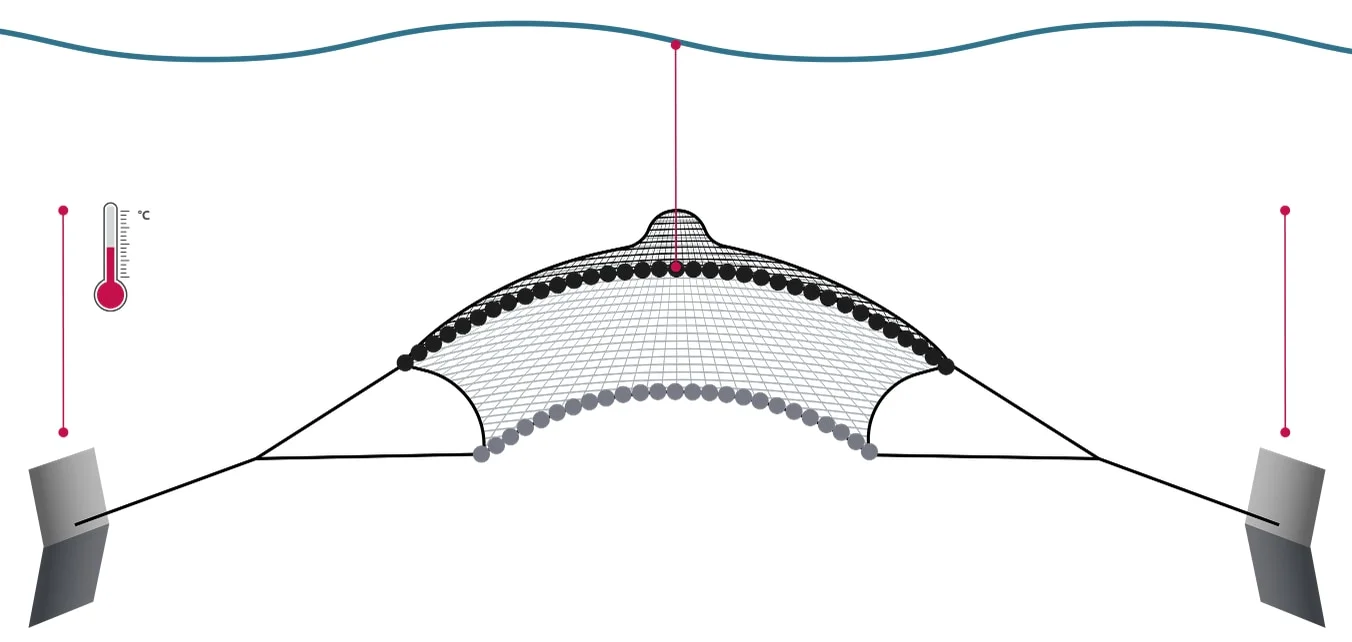

(Pictured) Door Depth

Door Depth Sensor

Depth sensors indicate the distance from the surface to the doors/trawl.

  • When mid watering, trawl depth allows for placement of the trawl at depth of the fish

  • When bottom trawling, depth will indicate when the gear is on bottom


(Pictured) Door Angle

DOOR ANGLE SENSOR

Door angle sensors provide the heel angle (inward/outward lean) and pitch angle (upward/downward pitch).

  • Set the trawl doors for optimal spread and optimal fuel consumption

  • Instantly indicate if too much trawl wire is shot as the door heels over

  • Confirm when doors are on bottom


(Pictured) Temperature Sensor

Temperature Sensor

Temperature sensors indicate temperature wherever the sensor is located.

  • Locate larger schools by trawling in the right temperature range

  • Target specific species.

  • Determine where the fish are


(Pictured) Headline Height

HEADLINE HEIGHT SENSOR

Headline Height sensors use an echo sounder to measure the distance from the headline to the seafloor. An optional footgear clearance sensor can be added to monitor the net opening and footgear clearance.

  • Raise and lower headline depending on species and trawling conditions

  • Indicate if the trawl is raising off the bottom due to towing too fast

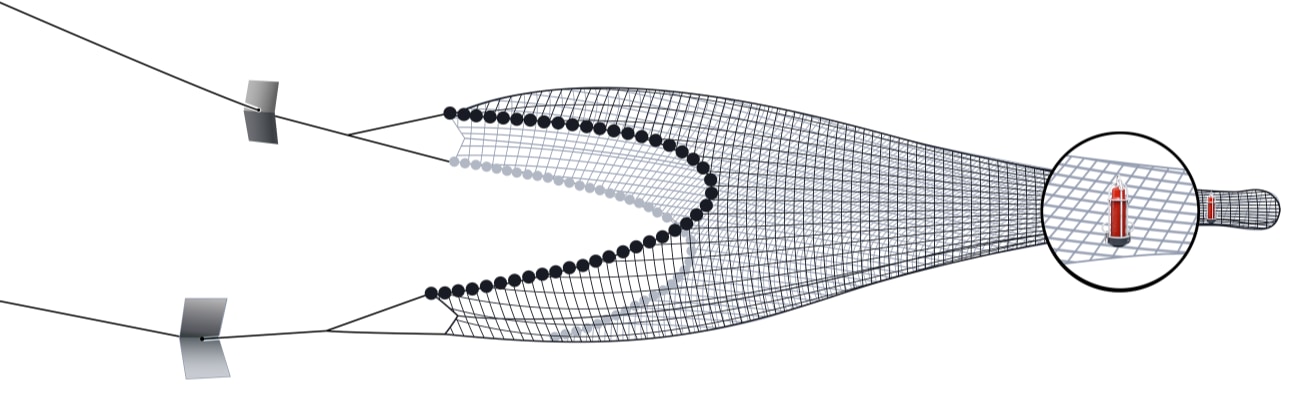

(Pictured) Catch Sensor

Catch Sensor

Catch sensors indicate when the cod-end has a set amount of fish. Multiple sensors can be used to indicate different amounts of fish.

Notus Trawlmaster Catch sensors:

  • Confirms that the trawl is fishing

  • Only take back what you can handle onboard

  • Prevents hauling back a trawl that is only half full

  • Provides a better indication of exactly where the fish are in the tow

  • Has a built-in gear location feature should you lose the trawl or just the cod-end

  • Improves fish quality

  • Prevents gear damage associated with over-filling the net

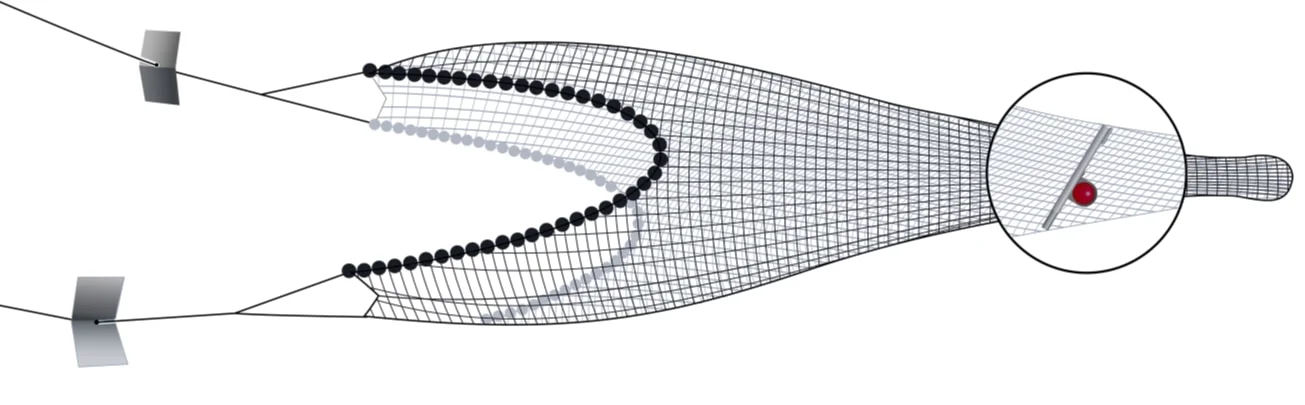

(Pictured) Grid Sensor

Grid/Grate Sensor

Grid sensors indicate angle of the sorting grid.

Notus Trawlmaster Grid sensors:

  • Are a necessity on any grid

  • Confirm that if the grid is not at the right angle, nothing goes to the cod-end

  • Indicate if your grid is blocked

  • Estimate catch volume by monitoring downward trend of grid angle

  • Instantly indicate if the grid is incorrectly rigged


(Pictured)  Bottom Contact

(Pictured) Bottom Contact

Bottom Contact Sensor

Bottom Contact sensors confirm that the trawl is on bottom using angle measurements. The sensor is attached to the fishing line and remains horizontal when the trawl is on bottom. The sensor orientates in a vertical position when the trawl comes off bottom.

  • Fishing is greatly reduced once the trawl comes off bottom

  • Indicates if the speed into the current is taking the trawl off bottom

  • If there is not enough trawl wire shot, the trawl will not be on bottom.

  • Overspreading the trawl doors can also result in the trawl coming off bottom


(Pictured) Wingend Spread

WINGEND SPREAD SENSOR

The Wingend Spread sensor provides the distance between the two wingends.

Notus Trawlmaster Wingend sensors confirm:

  • Keeping the optimal wing spread can be just as important as doorspread

  • Wingspread is a critical piece of information for researchers in calculating swept area.


(Pictured) Trawl Alignment

Trawl Alignment Sensor

The Trawl Alignment Sensor provides the alignment and adjustment behind the doors.

The following distances are calculated by the Notus Trawlmaster Trawl Alignment sensor:

  • from the starboard door to the center of the headline, and

  • from the port door to the center of the headline. Subtracting these two distances provides an adjustment to align the trawl.

When currents push the trawl to one side, there may be an adjustment needed to align the wing ends.
